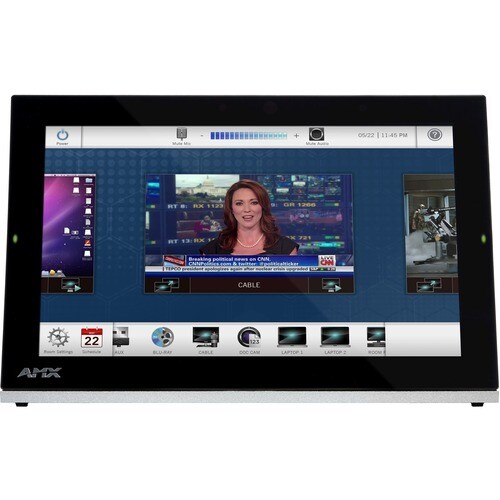

TOUCH SCREEN DISPLAY

Display Type: TFT Active Matrix Color LCD
Display Size (WH): 9.9" x 6.7" (252 mm x 170 mm), 12.0" (304 mm) diagonal
Viewable Area (WH): 8.5" x 5.3" (217mm x 136mm), 10.1" (257mm) diagonal
Resolution (WH): 1280x800
Aspect Ratio (WH): 16:9
Brightness: 400 cd/m2
Contrast Ratio: 700:1
Color Depth: 16.7M colors
Illumination: LED
Touch Overlay: Projected capacitive, multi-touch support, 3 simultaneous max
Viewing Angle: Vertical ± 89°, Horizontal ± 89°

MEMORY

SDRAM: 2 GB
Flash: 16 GB
Maximum Project Size: 12 GB flash, available for apps and touch panel files

COMMUNICATIONS

Ethernet: 10/100 Auto MDI-X port, RJ-45 connector. Supported IP and IP-Based Protocols: UCP, TCP, ICMP, ICSP, IGMP, DHCP, SSH, FTP, DNS, RFB (for VNC), HTTP
USB: USB host 2.0, Type A ports (1 with limited physical access requiring right angle connection): Firmware upgrade, touch panel file transfer, document and image viewing, HID peripherals
Bluetooth: Mouse/Keyboard: HID Profile v1.1 (requires external USB-BT adapter)

VIDEO

Supported Video Codecs:
MPEG-2-TS: MPEG-2 Main Profile @High Level up to 720p at 25 fps (decode only)
MPEG-2-TS: H.264 High Profile @Layer 4, AAC-LC up to 720p at 25 fps (encode/decode)
MJPEG up to 720p at 25 fps (decode only)
Supported Video Transport Streams: MPEG-TS for MPEG-2 and H.264; HTTP for MJPEG
Max Number of Active Video Streams: Two decode plus one encode

AUDIO

Speakers: 4 ohm, 2 Watt, 300 Hz cutoff frequency
Supported Audio Codecs:
MP2 Layer I and II, MP3 (8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz)
AAC-LC (8 kHz, 96 kHz)
G.711 with µLaw (VoIP encode/decode at 8kHz)
File Formats: WAV, MP3 (as part of touch panelfile only - no USB storage)

GRAPHICS ENGINE

AMX G5: G5 enhanced feature set supporting multi-touch and gestures, scrolling, transitions, applications - See TPD5 Operations Guide for more information

CONNECTIONS

Ethernet: 10/100 Auto MDI-X port, RJ-45 connector through cable extension
USB: (1) USB host 2.0, Type A ports
Power: PoE (Power over Ethernet), 802.3af, class 3
